万彩网100线路HX810 is a single-chip programmable Hall effect linear sensor produced using advanced BCD technology. It includes a high-sensitivity Hall sensor, high-precision Hall temperature compensation unit, Hall signal preamplifier, oscillator, dynamic offset elimination circuit, and amplifier output module. It can provide customers with more effective AC/DC current detection solutions and is widely used in communication, industrial, and consumer electronic devices.

万彩网100线路HX810 adopts overcurrent protection and high bandwidth dynamic offset cancellation technology. In the absence of a magnetic field, the static output can choose 50% VCC or a fixed value of 2.5V. The internally integrated dynamic offset elimination circuit ensures that the sensitivity of the IC is not affected by external pressure and IC packaging stress.

The output voltage of HX810 is directly proportional to the applied magnetic field strength. Users can program the power pins to adjust the chip sensitivity and static (zero field) output voltage, thereby improving product performance in the final application.

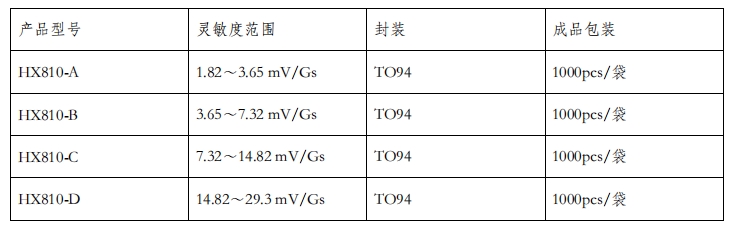

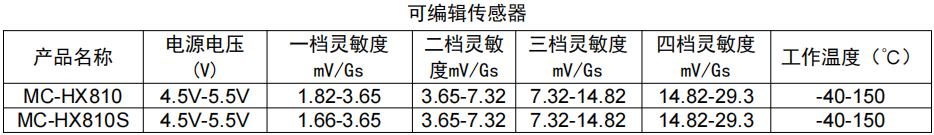

万彩网100线路The static output voltage of HX810 can be adjusted within a range of 2.5V ± 0.2V or 50% VCC, and the output sensitivity can be adjusted within a range of 1.8-30mV/Gs.

万彩网100线路Programmable microcontroller

• Accuracy (typical value):+ 1mV@25 ℃

• 万彩网100线路High linearity: ± 0.1% @ 25 ℃;

• 万彩网100线路High bandwidth: 65kHz;

• Output response time: 4us (typical value);

• 万彩网100线路Stability within the working range: 1.5% @ 25 ℃~150 ℃; 1%@-40℃~25℃；

• Vour fixed 2.5V output;

• 万彩网100线路VREF fixed output 2.5V;

• 万彩网100线路Low noise analog signal path;

• Strong anti-interference ability;

• Strong resistance to mechanical stress, magnetic field parameters are not cancelled out by external pressure;

• Electrostatic discharge (HBM): 5kV;

• 万彩网100线路Working temperature: -40 ℃~150 ℃;

• RoHS certified: (EU) 2015/863

万彩网100线路application area

• Inverter current detection

• 万彩网100线路Motor phase current detection (motor control);

• 万彩网100线路Photovoltaic inverter;

• Battery load detection system

• Current transformer;

• Switching power supply;

• 万彩网100线路Overload protection device;
