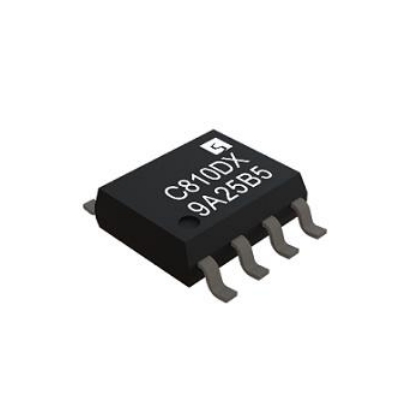

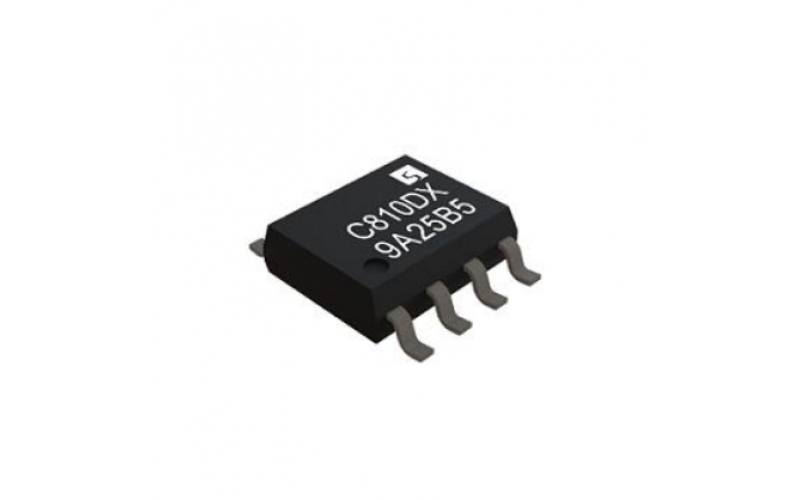

SC810 is the most cost-effective member of Weikewei's fully integrated Hall current sensor product line. It is an isolated current detection chip that works on the open-loop Hall sensor detection principle. The main differential output mode is convenient for subsequent applications, and its ultra wide dynamic detection capability supports customer detection of measured current ranges as low as 1A and as high as 50A. Satisfy users to achieve load current detection under insulation isolation conditions, suitable for replacing passive or discrete sensor detection solutions such as power resistors, linear optocouplers, transformers, etc.
万彩网100线路Isolation measurement, isolation withstand voltage>; 3kv @ 50HZ, 1 minute
Can measure DC and AC currents
Ultra wide current detection range, suitable for detecting ampere level currents

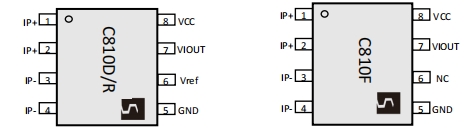

Support Viout Vref differential output mode

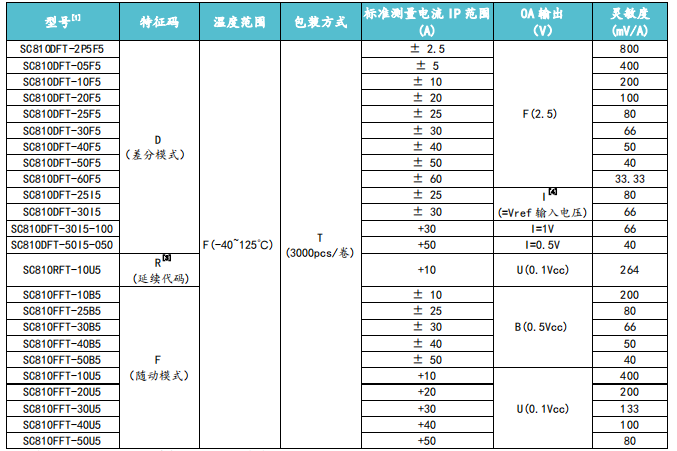

万彩网100线路Optional reference voltage mode: fixed 2.5V, 0.5VCC, 0.1VCC, external input
万彩网100线路Response time as low as 2uS
Wide working temperature range: -40C~125C
High precision: Room temperature<; 1% accuracy error
Working temperature zone:<; 3% accuracy error
万彩网100线路Not affected by the interference of electric wire magnetic field, external magnetic field, and geomagnetic field
Independent research and development, no technological dependence
万彩网100线路SC810 adopts fully automated production and processing, which can bring customers unparalleled consistency, high quality, high reliability, and low cost compared to discrete solutions. The standard package design is very suitable for customers to carry out batch automatic surface mount production, and is the best solution for applications such as power device current detection, household appliances, power supplies, load detection, etc.
