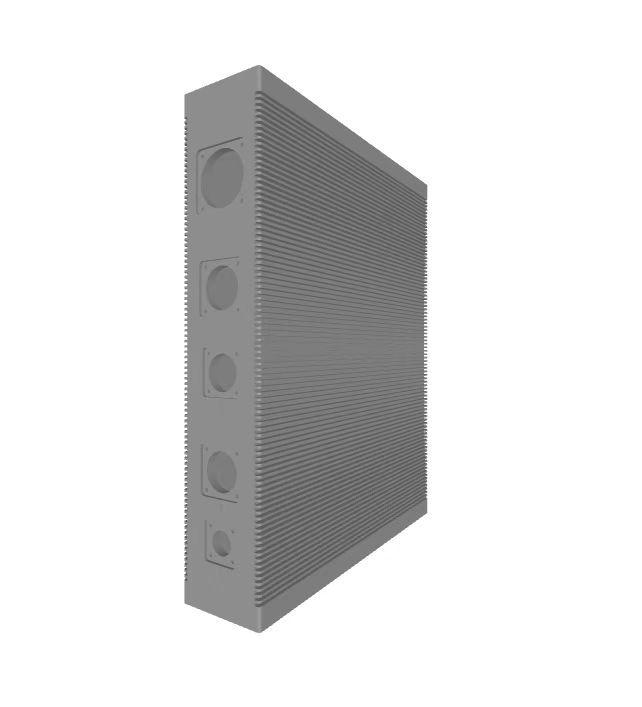

万彩网100线路The 120V series solid power controller is a module that distributes DC power and provides protection functions. This controller can receive diverse input control signals, including switch inputs, data buses, etc. The solid-state power controller (SSPC) within the module can be controlled to turn on or off through the data bus. The working status of the module can be reported in real-time through the data bus. It can be widely used for power system distribution and management in fields such as aircraft, tanks, ships, and measurement and control.

万彩网100线路Product Features:

·Control input and output electrical isolation (≥ 2500Vd. c.)

万彩网100线路·Output load up to 100A

·Adopting the VIAT48 standard module structure

万彩网100线路·I2t load overcurrent protection and short-circuit tripping protection

·Provide multiple data buses (1553B, ARINC429，RS485，RS422，CAN）

Function:

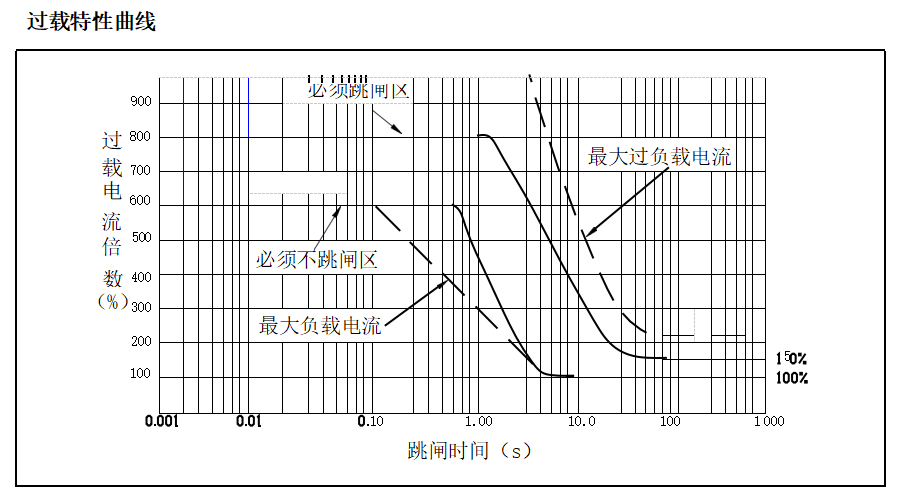

Load voltage detection, load current detection, protection method based on I2t curve, active current limiting, power filtering, load safety protection.

Input voltage range: 0-200V,

Rated input voltage 120Vd. c,

Output current: 5A (12H),

万彩网100线路Insulation resistance: ≥ 100M Ω,

Dielectric withstand voltage: ≥ 500Vr. m.s,

万彩网100线路Output leakage current: ≤ 10 μ A,

Control mode: Bus (RS422, RS485, CAN), optional switch control&# 39;

Technical features:

Realize zero voltage conduction and shutdown (AC equipment)

万彩网100线路Synchronize between 3 stages as AC SSPC (any stage)

万彩网100线路Current threshold and delay actuator overload protection

万彩网100线路Programmable time delay operation or release

Fault safety detection function

Optional arc fault detection

万彩网100线路Adopting solid-state control technology, with low heat dissipation.

万彩网100线路Characteristics of this SSPC product:

1. Integrate all sealed solid-state relays onto the PCB board for installation.

2. Current includes: 2A, 5A, 10A, 25A; And it can support a voltage level of 110VDC.

万彩网100线路3. Adopting solid-state relays.

万彩网100线路4. You can choose to use the installation method of base+relay.

万彩网100线路5. It can inherit transient suppression devices (including PCB installation or plug sockets) and other electronic components (such as diodes), as well as delay relay integration (including PCB installation or plug sockets).

6. Based on solid-state power control, flexible technical methods can easily change or modify the working principle of the board, providing convenience for future electrical upgrades.

Environmental parameters
