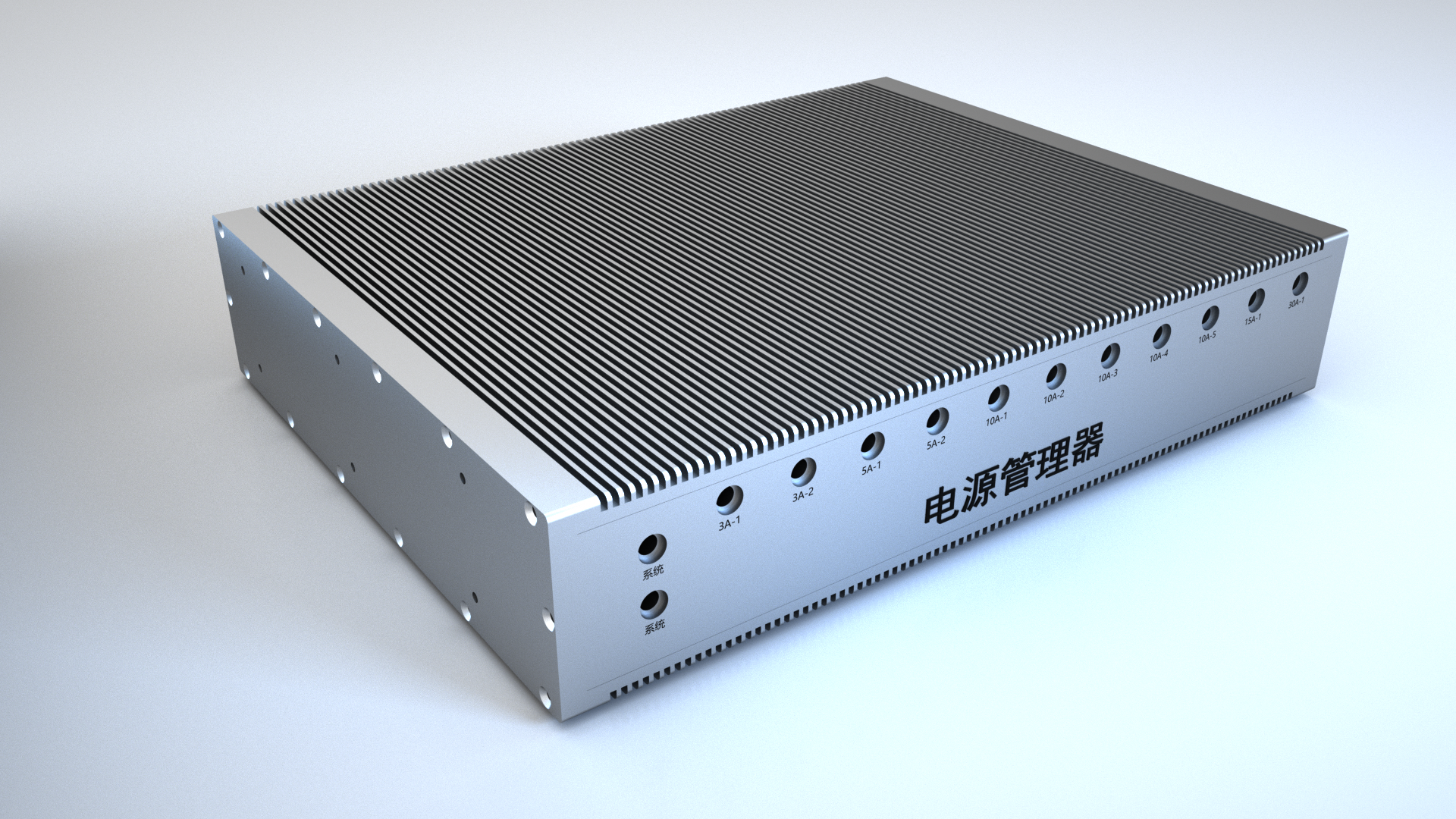

万彩网100线路The AC115V series solid power controller is a module that distributes DC power and provides protection functions. This controller can receive diverse input control signals, including switch inputs, data buses, etc. The solid-state power controller (SSPC) within the module can be controlled to turn on or off through the data bus. The working status of the module can be reported in real-time through the data bus. It can be widely used for power system distribution and management in fields such as aircraft, tanks, ships, and measurement and control.
Product Features:
万彩网100线路·Control input and output electrical isolation (≥ 2500Va. c.)
·Output load up to 100A
万彩网100线路·Adopting the VIAT48 standard module structure
·I2t load overcurrent protection and short-circuit tripping protection
·Provide multiple data buses (1553B, ARINC429，RS485，RS422，CAN）
Environmental parameters
project | 万彩网100线路minimum value | Maximum value | Company |
万彩网100线路working temperature | -40 | 105 | ℃ |
万彩网100线路Storage temperature | -55 | 万彩网100线路one hundred and twenty-five | ℃ |
Shock (specified pulse) | 100，11 | （m/s2），ms | |
Load voltage detection, load current detection, protection method based on I2t curve, active current limiting, power filtering, load safety protection.
Input voltage range: 0-200V,
Rated input voltage 120Vd. c,
Output current: 5A (12H),
Insulation resistance: ≥ 100M Ω,
Dielectric withstand voltage: ≥ 500Vr. m.s,
Output leakage current: ≤ 10 μ A,
Control mode: Bus (RS422, RS485, CAN), optional switch control.
