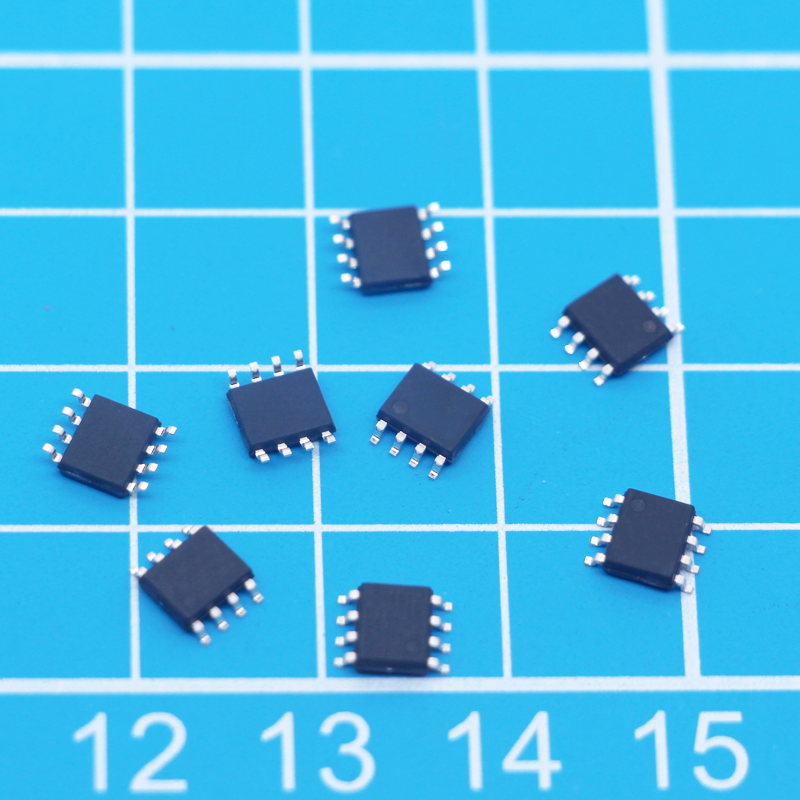

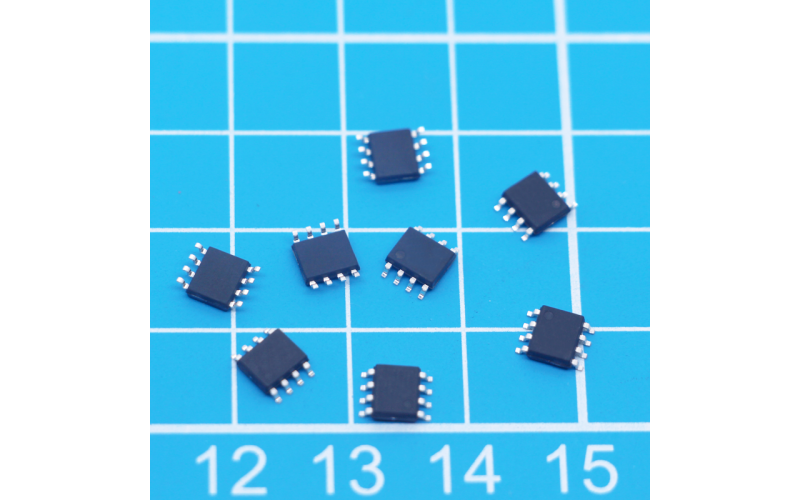

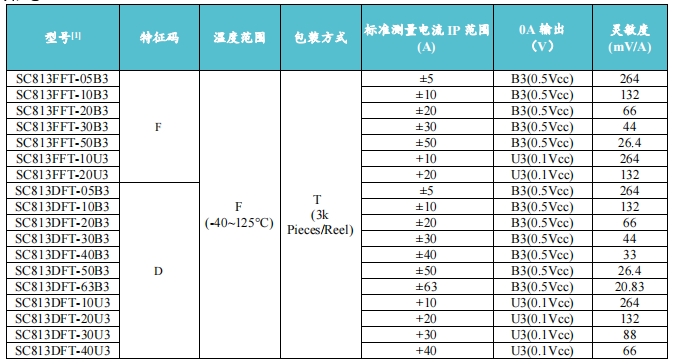

The SC813 series is an isolated current detection chip that operates based on the open-loop Hall sensor detection principle. By introducing the current wire on the high-voltage side into the package, based on the magnetic effect of the current, the proportional magnetic field generated around the measured wire is sensed by the built-in chip's magnetic sensor and converted into a processable proportional voltage signal. This voltage signal is read and amplified by a high-precision ADC and combined with digital calibration technology to remove environmental variables such as temperature, noise, hysteresis, nonlinearity, etc., and finally outputs a voltage value that is almost ideally proportional to the measured current value, achieving isolated current measurement.

• High precision: Room temperature<; 1% accuracy error

• Working temperature zone:<; 3% accuracy error

• 万彩网100线路Minimum current wire impedance: 1m Ω

• 万彩网100线路Wide working temperature range: -40 ° C~125 ° C

• 万彩网100线路Support fully automatic wave soldering surface mounting and tape packaging

• Isolation voltage withstand>; 3kv @50HZ

• 万彩网100线路Isolated measurement

• 万彩网100线路Optional reference voltage mode: 0.5Vcc0.1Vc

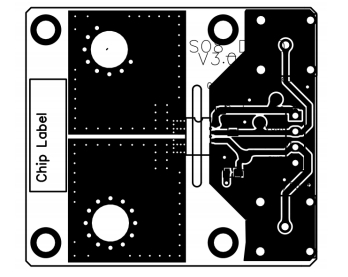

(PCB Demo board reference wiring diagram)
