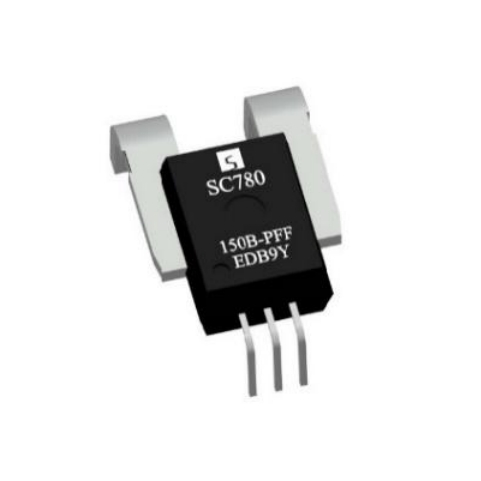

SC780 is a member of the national fully integrated current sensor product line. It is the industry's first fully automated plastic sealed assembly fully integrated current detection module and the first domestically developed fully independent and controllable open-loop Hall type current sensor module from chip design to module assembly process. This product achieves a current wire impedance as low as 0.08m Ω in the semiconductor encapsulation process, making it suitable for power systems that require continuous operation and measurement up to 180A. The sensor integrates a low impedance primary conductor, a low hysteresis magnetic core, and a self-developed linear Hall IC.

• 万彩网100线路Can measure direct current and alternating current

• 万彩网100线路Minimum current wire impedance: 0.08m Ω

• Surge current withstand capacity of 20kA 8/20uS

• 万彩网100线路Response time as low as 4uS

• Optional unidirectional current detection mode

• Wide working temperature range: -40 ℃~125 ℃

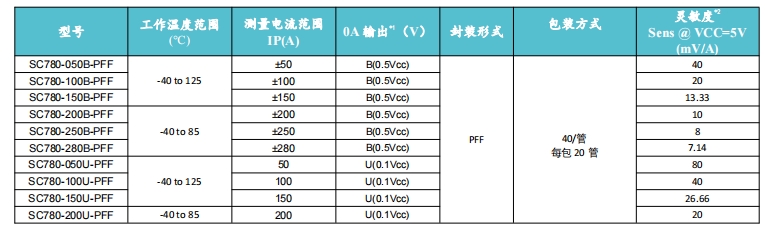

• 万彩网100线路Wide measured current range: 50A~280A

• Independent research and development, no technological dependence
