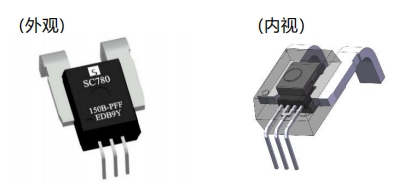

SC783 is a member of Weikewei's fully integrated current sensor product line. It is the industry's first fully automated plastic sealed assembly fully integrated current detection module and the industry's first fully autonomous and controllable open-loop Hall current sensor module from chip design to module assembly process development. This product achieves a current wire impedance as low as 0.08m Ω in the semiconductor encapsulation process, making it applicable to power systems that require continuous operation for measuring up to 200A. The sensor integrates a low impedance primary conductor, a low hysteresis magnetic core, and a self-developed linear Hall IC.
SC783 adopts fully automated production and processing, which can bring customers unparalleled consistency, high quality, and high reliability in module technology. This product can be used for AC or DC current measurement and is applied in industrial, commercial, and communication systems such as UPS, charging stations, frequency converters, and white goods. Committed to researching core chip technology, with the aim of providing the best autonomous and controllable current detection solution for national defense equipment.
Isolated measurement, with a voltage withstand of up to 5kv @ 50Hz, for 1 minute
Can measure direct current and alternating current
万彩网100线路Minimum current wire impedance: 0.08m Ω
Surge current withstand capacity of 20kA 8/20uS
万彩网100线路Response time as low as 4uS
万彩网100线路Optional unidirectional current detection mode
万彩网100线路Wide working temperature range: -40 ℃~125 ℃

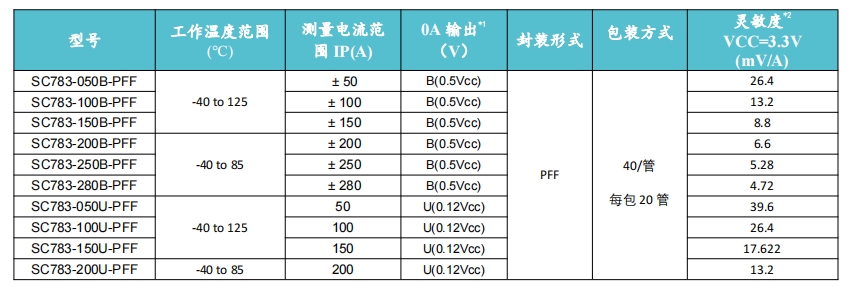

Wide measured current range: 50A~200A
