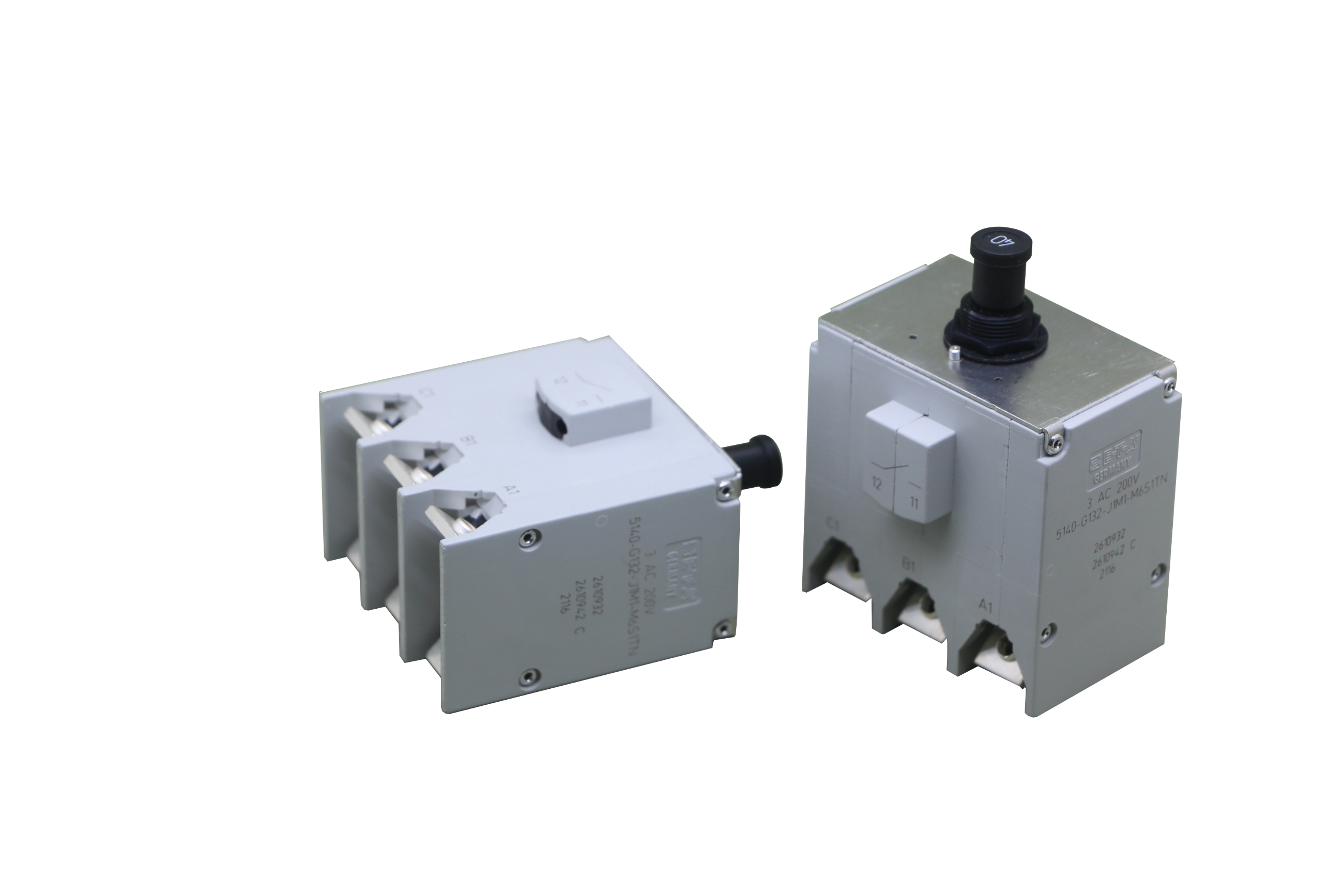

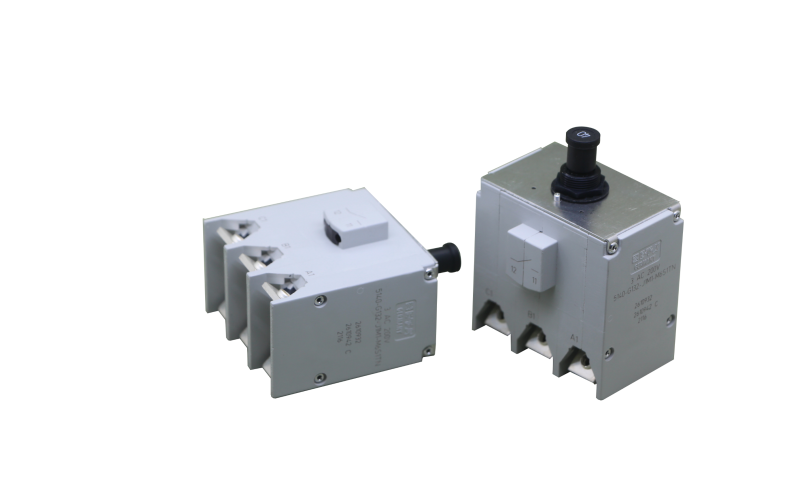

万彩网100线路Three pole, high-performance aviation circuit breaker with free trip and manual push-pull switch, neck threaded panel installation, temperature compensation, optional auxiliary contacts. Used as an auxiliary low-voltage power supply system for various land, sea, and air transportation vehicles. Including transport planes, fighter jets, helicopters, drone trainer planes, and similar fields.
Rated current value and corresponding typical internal resistance value of circuit breaker | |||
Rated current (A) | Voltage drop/pole (mV) | Rated current (A) | Voltage drop/pole (mV) |
1 | seven hundred and fifty | 万彩网100线路seven point five | 万彩网100线路two hundred and thirty |
2 | five hundred and twenty | ten | one hundred and ninety |
two point five | four hundred | fifteen | 万彩网100线路one hundred and ninety |
3 | three hundred and sixty | twenty | 万彩网100线路two hundred |
4 | three hundred and fifty | 25 | 万彩网100线路one hundred and seventy |
5 | two hundred and sixty | thirty | one hundred and sixty |
Rated voltage: 3 AC 200 V (400 Hz); DC 28 V
Rated current range: 1-30A
万彩网100线路Environmental temperature: -55-+125 ° C (-67-+257 ° F) ≤ 15 A
万彩网100线路-55-+90 °C (-67-+194 °F) >15 A
Acceleration: 17 g, to ISO 2669
UL 1077:
万彩网100线路DC 50V; 0.5-25A
