SC8102 is a member of vicorv fully integrated Hall current sensor product line, which mainly promotes high-sensitivity current detection for convenient downstream applications. Its ultra wide dynamic detection capability supports customers to detect current ranges as low as 1A and as high as 30A. Satisfy users to achieve load current detection under insulation isolation conditions, suitable for replacing passive or discrete sensor detection solutions such as power resistors, linear optocouplers, transformers, etc.

• Isolated measurement, with a voltage withstand of up to 3kv @ 50Hz, for 1 minute

• 万彩网100线路Can measure direct current and alternating current

• Minimum current wire impedance: 0.8m Ω

• 万彩网100线路Ultra wide current detection range, suitable for detecting 1A level current

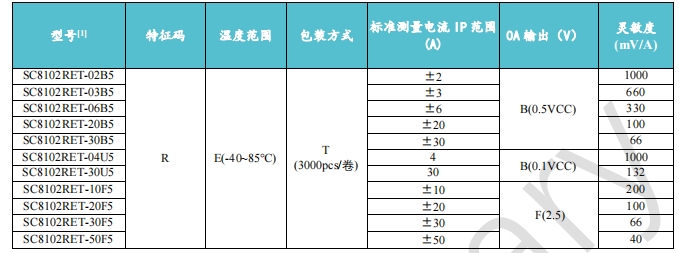

• Optional reference voltage modes: 2.5V, 0.5VCC, 0.1VCC

• Zero point voltage hysteresis close to zero

• Response time as low as 2uS

• 万彩网100线路Wide working temperature range: -40 ℃~85 ℃

• High precision: Room temperature<; 1% accuracy error working temperature range:<; 6% accuracy error

• Strong driving capability, supporting output ports to connect loads as low as 2k Ω

• Fully integrated current solution, occupying the smallest board area

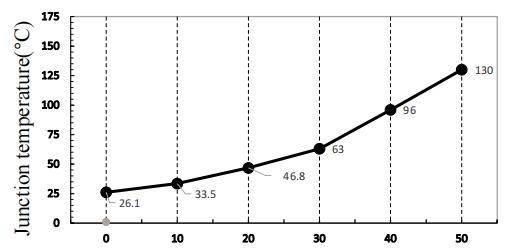

万彩网100线路Note: The relationship between the package temperature and the primary side current of the SC8102 series tested based on our DEMO board at an ambient temperature of 26 ℃.
