万彩网100线路HX693 is a high-performance linear Hall sensor, whose output signal is determined by the magnetic field strength applied to the sensitive surface of the device and varies proportionally with the magnetic field strength. The static output voltage of the chip is 50% of the power supply voltage, and the sensitivity is 3mV/Gauss.

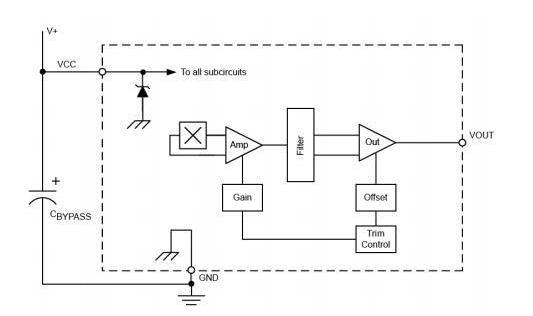

万彩网100线路The HX693 sensor has an integrated Hall circuit and temperature compensation circuit inside to reduce Hall elements, small signal high gain amplifier, and proportional low impedance output.

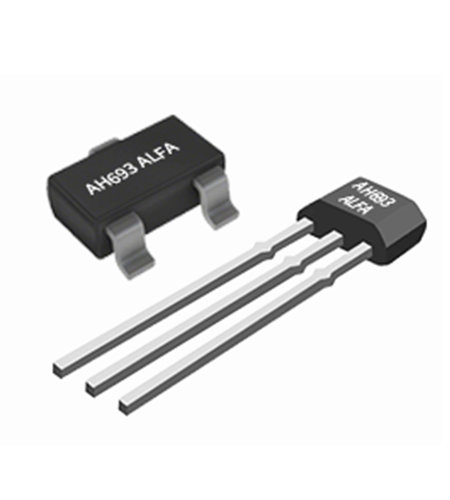

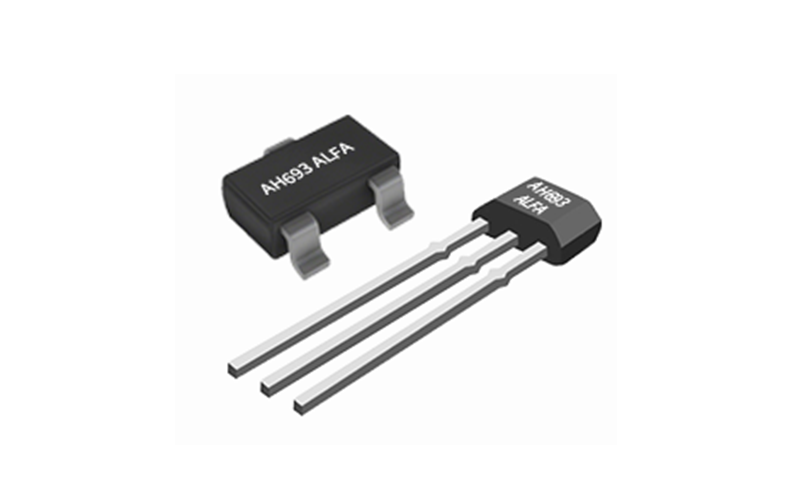

万彩网100线路This chip is suitable for automotive applications and industrial environments, with a working temperature range of -40 ° C to 125 ° C. HX693 comes in two packaging forms: T92 and SOT89. Both types of packaging do not contain lead (Pb) and comply with ROHS standards.

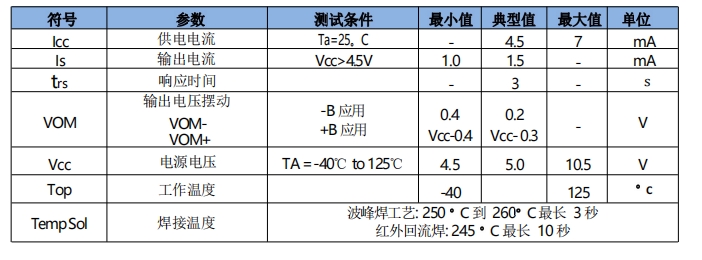

(VCC=5.0V, TA=-40 ° C to 125 ° C)

features:

• High precision, low-noise output

• 万彩网100线路Track to track output

• 万彩网100线路Power supply range 4.5v to 10.5v

• 万彩网100线路High working frequency

• 万彩网100线路Output voltage is proportional to magnetic flux density

• 万彩网100线路Wide operating temperature range: -40C to 125C

• ESD performance can reach ± 4KV
