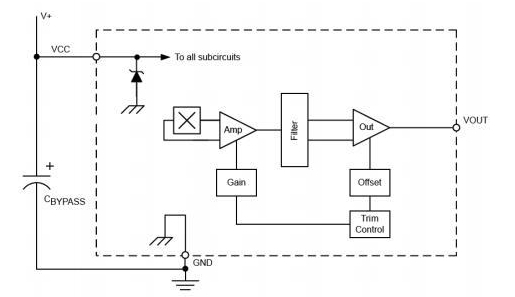

HX695 is a high-performance linear Hall sensor, whose output signal is determined by the magnetic field strength applied to the sensitive surface of the device and varies proportionally with the magnetic field strength. The static output voltage of the chip is 50% of the power supply voltage, and the sensitivity is 6mV/Gauss. There is an integrated Hall circuit and temperature compensation circuit inside to reduce Hall elements, small signal high gain amplifier, and proportional low impedance output.

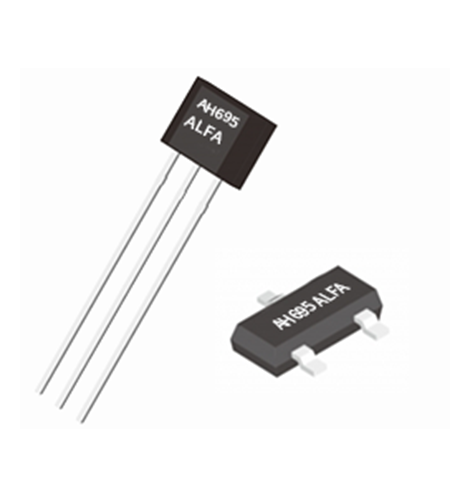

This chip is suitable for automotive applications and industrial environments, with a working temperature range of -40 ℃ to 125 ℃. HX695 comes in two packaging forms: To92S and SOT89. Both types of packaging do not contain lead (Pb) and comply with RoHS standards.

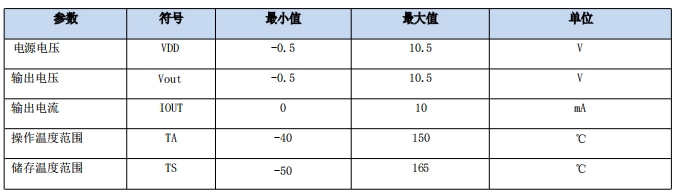

Core parameters and product advantages:

万彩网100线路High precision, low-noise output

Track to track output

万彩网100线路Power supply range 4.5v to 10.5v

High working frequency

万彩网100线路Output voltage is proportional to magnetic flux density

Wide operating temperature range: -40 ° C to 125 ° C（

Quick power on

Temperature cycle recovery

To92S and SOT89 comply with ROHS standards

ESD performance can reach 4KV

Application areas:

Angle position sensor

Displacement sensor

万彩网100线路Overcurrent detection

BLDC motor current monitoring

Weight and liquid position sensing
