The Hall linear sensor provided by Weikewei is an independently controllable linear Hall device with advanced performance and a temperature range of -40 ℃~150 ℃.

The characteristics of this Hall linear sensor are as follows

• 万彩网100线路The power consumption at 5 VDC is 4 mA to improve energy efficiency

• 万彩网100线路Single current sinking or current source output

• Linear output of circuit design flexibility

• Proportional rail to rail linear output

• 万彩网100线路Accurate sensitivity and temperature compensation

• 万彩网100线路Wide working voltage range: power supply voltage 3.0~15V

• Sensitivity at 5V:

• 3.3 millivolts/Gauss (CH603)


• 2.5mV/Gauss (CH604)


• 5.0 millivolts/Gauss (CH605)


• The specified working temperature range is from -40 ℃ to 150 ℃


• Response to positive Gaussian or negative Gaussian


• Four Hall sensor elements, stable output

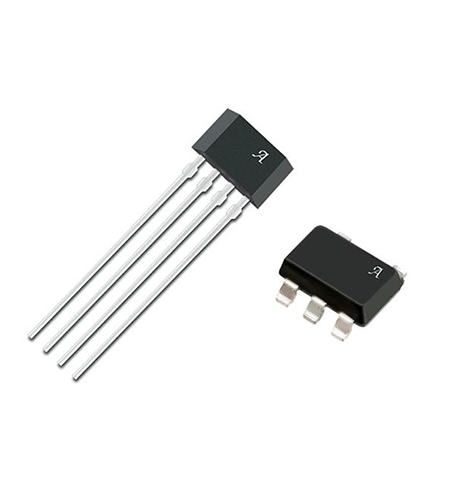

• Lead free packaging: Flat TO-92 SOT-89-3L、SOT-23-3L


• 万彩网100线路High ESD protection
