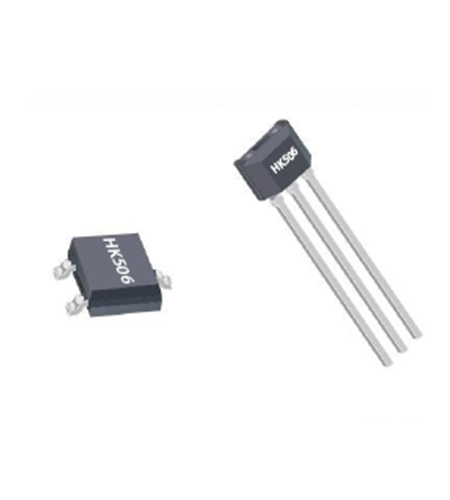

万彩网100线路HK506 is a high-sensitivity unipolar Hall switch chip designed with advanced BCDMOS technology. It has temperature compensation, precise comparator, and powerful output driver. This sensor series is highly suitable for industrial and automotive applications, with a working temperature range of -40 ° C to 150 ° C and a power supply voltage range of 2.7V to 30V. It adopts various ROHS compliant packaging, such as TO92S and SOT23, and has been certified by AEC-Q100 for automotive use.

• 万彩网100线路AEC-Q100 Class 0 Automotive Grade

• Working voltage range: 2.7V~30V

• 万彩网100线路Electrostatic discharge: ± 12kV

• 万彩网100线路High mechanical stress suppression capability

• Temperature range: -40 ℃ to 150 ℃

• 万彩网100线路Compensate for the decrease in magnetic flux density caused by temperature increase through the built-in negative temperature coefficient

• 万彩网100线路Reverse voltage protection for the VCC pin

• Suitable for automobiles and industry

• 万彩网100线路Overvoltage protection up to 40V
